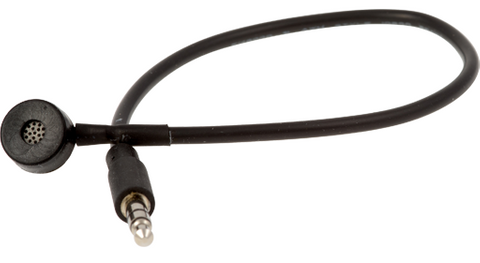

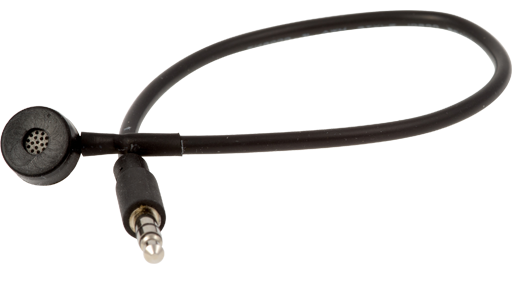

AXIS 01963-001 - Device Microphone B is an omnidirectional microphone to enable audio recording and/or audio analytics with devices that support audio but do not include a microphone
Description
AXIS Device Microphone B
For selected AXIS P32-LV Cameras
AXIS Device Microphone B can be installed with AXIS P32-LV Network Cameras in combination with AXIS TP3201 Recessed Mount.
Features:
*Terminal Block to 3.5mm Audio Extension included
*Ultra-low noise
*Frequency response 20 Hz ? 20 kHz, ? 2 dB.
*Signal-to-noise ratio (SNR): 80 dBA (relative 1 kHz @ 1 Pa, 94 dB SPL).
*Sensitivity -28 dB ? 3 dB (at 1 kHz, 0 dB=1 V/Pa).
*Max?sound pressure?level (SPL): 119 dB at 1 kHz.
*Impedance 1.5 k? @ 1 kHz.
*Temperature range: -20 ?C to 60 ?C
For selected AXIS P32-LV Cameras
AXIS Device Microphone B can be installed with AXIS P32-LV Network Cameras in combination with AXIS TP3201 Recessed Mount.
Features:
*Terminal Block to 3.5mm Audio Extension included
*Ultra-low noise
*Frequency response 20 Hz ? 20 kHz, ? 2 dB.
*Signal-to-noise ratio (SNR): 80 dBA (relative 1 kHz @ 1 Pa, 94 dB SPL).
*Sensitivity -28 dB ? 3 dB (at 1 kHz, 0 dB=1 V/Pa).
*Max?sound pressure?level (SPL): 119 dB at 1 kHz.
*Impedance 1.5 k? @ 1 kHz.
*Temperature range: -20 ?C to 60 ?C
