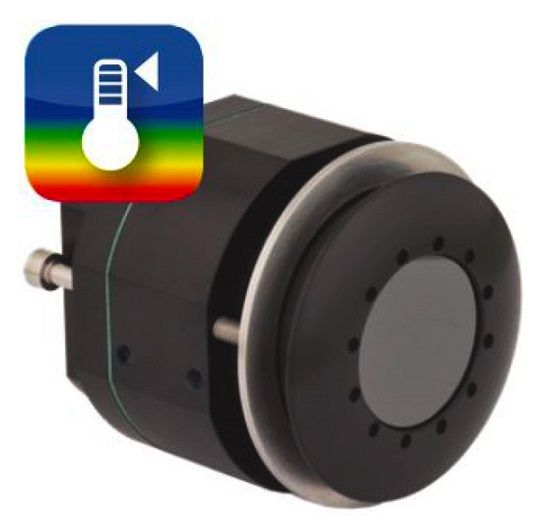

MOBOTIX Thermal Sensor Module TR For S16/S15, 50 mK, B237 (17 degree)

Description

Thermal Sensor Module TR for the S16/S15.Thermal radiometry (TR): calibrated thermal sensor for temperature events from -40 to 550 degreeC (-40 to 1022 degreeF).NETD typ. 50 mK, <79 mK, IR range 7.5 to 13.5 micrometer, uncooled micro bolometer, up to.frames per second.Germanium Lens (included): B237 equivalent, horizontal/vertical image angle 17 degree/13 degree.Image size: 336.252 pixels (can be scaled up to 6MP).IP66, -30 to 60 degreeC (-22 to 140 degreeF).Housing: Black anodized aluminum.Camera connection via MOBOTIX sensor cable (max..m/9.8 ft, to be ordered individually)
